Great Wall CPU Cooler RGB 4 Pipes 90mm Dual Fans Radiator for Intel LGA 1150 1151 1155 1156 LGA 775 AMD AM4 AM3 FM2 CPU Cooling

Add to wishlistAdded to wishlistRemoved from wishlist 0
Sold by
@ Ebygold - Sell Online Locally Ask owner



Report Abuse
SKU: 4000898141643 Category:
  • Brand Name: Great Wall
  • Application: Processor
  • Package: Yes
  • Compatible CPU: LGA1150/1151/1155/1156/LGA775,AMD SOCKET FM2/FM1/AM3 /AM4/AM2/940/939/
  • Bearing: Fluid Bearing
  • Fan Life: 40000 hrs
  • Fan Speed Control: 2000±10%RPM
  • Noise: 30dBA
  • Feature: RGB Support
  • Air Volume: 33 CFM
  • Lines: 2 Lines
  • Type: Fan
  • Power Interface: 4pin
  • Model Number: GW-G400OE
  • Heatsink Material: Aluminum
  • Fan Size: 92x92x25mm
  • Radiator Size: 115mm*110mm*150mm
  • Weight: 0.79kg
  • Voltage: 5V DC
  • Fan Lighting Type: ARGB
  • TDP: 145W
  • Compatible Interface: LGA1150/1151/1155/1156/LGA775/1200
  • Compatible Interface 2: AMD SOCKET FM2/FM1/AM3 /AM4/AM2/940/939/754
  • Advantage: Aura Sync
  • Feature 01: RGB CPU Cooler
  • Feature 02: CPU Air Radiator
  • Feature 03: CPU Cooling Fan
  • Feature 04: Heatsink for PC
  • Feature 05: Computer Radiator
  • Feature 06: 90mm CPU Fan
  • Feature 07: CPU Cooler AM4
  • Feature 08: LGA 775 Cooler

Great Wall CPU Cooler RGB 4 Pipes 90mm Dual Fans Radiator for Intel LGA 1150 1151 1155 1156 LGA 775 AMD AM4 AM3 FM2 CPU Cooling


3D RGB Lighting Effect


Aura Sync

Intelligent Speed Regulation

Mechanical Armor Pressurization

Support INTEL SOCKET LGA1150/1151/1155/1156/LGA775/1200,AMD SOCKET FM2/FM1/AM3+/AM4/AM2/940/939/754

Antipyretic Power: 145W


3D RGB Lighting Effect, More Than Just Flat

With armor-style shell, let you increase your strength in the battlefield


Support mainstream and motherboard lighting effect synchronization

Support ASUS, ASRock, MSI, Gigabyte and other lighting effects synchronization, let the motherboard control the radiator lighting effects, create your own hero legend

A-RGB Support 5V Motherboard

Motherboard lighting effect synchronization interface

Radiator lighting effect interface

Cooling fan interface(PWM)

Light effect fan interface


Note: RGB lighting effect only supports 5V voltage interface. Please check the interface voltage of the motherboard to avoid damage .

Please note that the direction of the interface is the same as the power interface. And it will be burned immediately after being reversed.


Double tower and double fan structure, four heat pipes directly contact the base

4 heat pipe matrix distribution, efficient heat conduction, double fin design. Increase heat dissipation area

The front and rear fans blow straightly, forming a powerful air duct to take away heat faster

Synchronized Lighting Effects

PWM Intelligent Speed Regulation

Temperature-controlled fan, which can adjust the fan speed according to temperature, sleep-level mute effect. Equipped with RGB for unified lighting effects

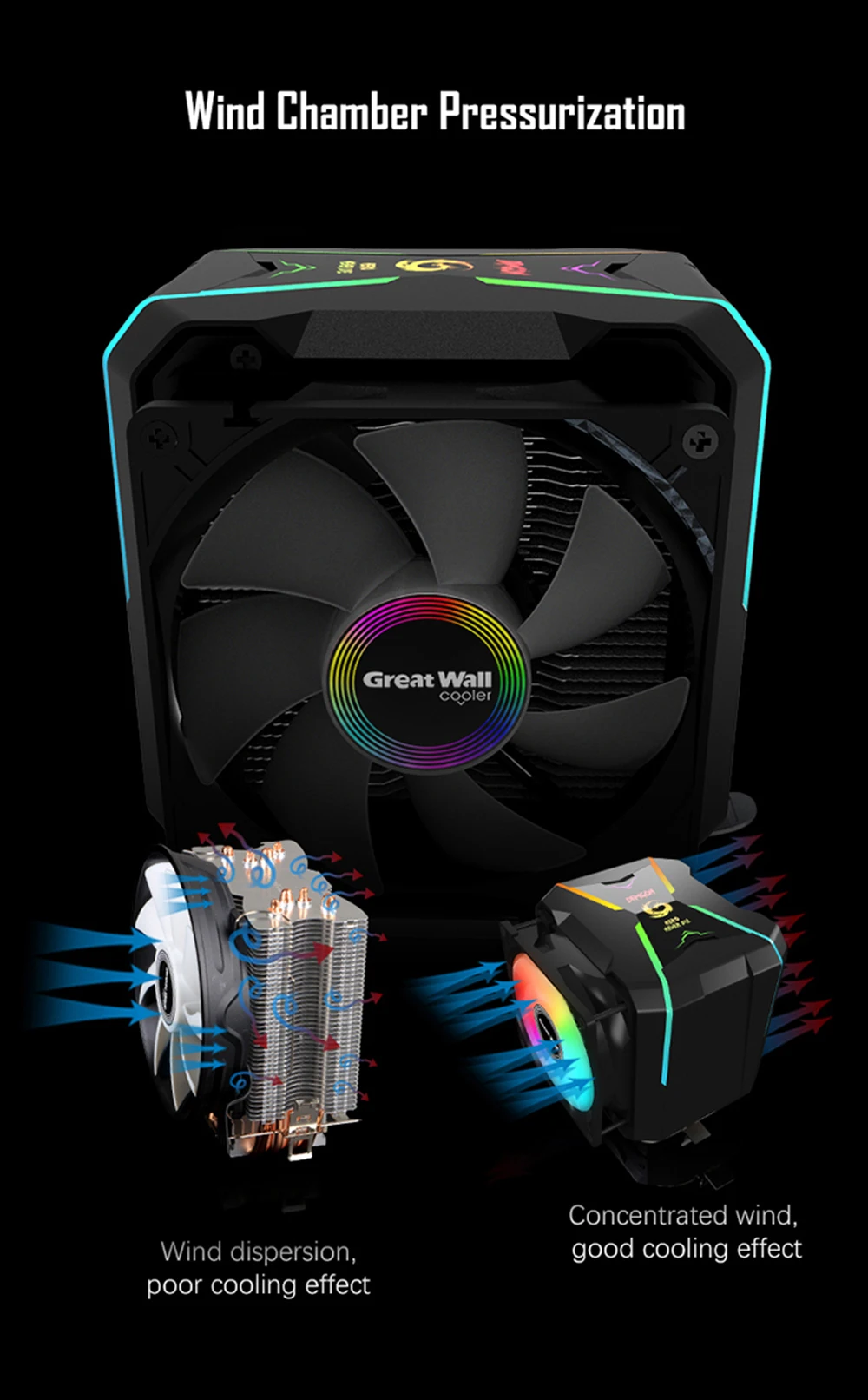

Wind Chamber Pressurization Technology (WCP)

The mecha shell to create a closed wind chamber for powerful pressurization. Create stronger air ducts with high-pressure high-efficiency fans, focus on the wind pressure and directly blow the cooling fins and copper pipes, speed up the thermal cycle and improve the overall heat dissipation efficiency.

Bridge Type Buckle With Even Force

Ultra-thick aluminum bottom for enhanced heat dissipation

Bridge type buckle design, more uniform force, give more care for the motherboard, more secure fixing, ensure that the CPU and the radiator are in close contact, and it is not easy to fall off

Full Support On Mainstream Platforms

Support INTEL SOCKET LGA1150/1151/1155/1156/LGA775,AMD SOCKET FM2/FM1/AM3+/AM4/AM2/940/939/754.

Easy Installation Without Tools And Excellent Compatibility

Intel LGA775 115X Installation Guide

Step 1: Install the bracket on the motherboard and insert four pins

Step 2: The bracket is mounted on the motherboard (the motherboard is placed on a soft surface or suspended)

Step 3: Insert pin to fix the bracket

Step 4: Apply the thermal paste to the CPU evenly


AMD 754/939/940/AM2/AM2+/AM3/FM1/FM2 Installation Guide

Step 1: Hang the short side bracket hook first

Step 2: Flatten the radiator with one hand

Step 3: Simultaneously press down the profile with the other hand and hang the hook on the other side of the bracket

Step 4: Move left and right, check if the radiator is installed correctly



-Radiator Power: TDP≤145W

-Product Size: 110mm*115mm*150mm

-Fan Size: 92mm*92mm*25mm

-Rated Current: FAN/0.4A(MAX) Light/0.35A(MAX)

-Input Voltage: FAN/DC 5V Light/DC 5V

-Fan Speed: 1500-2500RPM±10%/2000RPM±10%

-Air Volume: 33.9CFM/35CFM

-Fan Noise: 32.2dBA/29dBA

-Product Interface: FAN/4 PIN(PWM)/3PIN Light/Large 4 PIN

-Bearing Type: Hydraulic Bearing

-Life Expectancy: 40,000h

Questions & Answers

Q: What is the TDP of this cooler

A: It’s up to 145W


Q: What is the compatibility of this cooler?

A: It depends on your CPU socket type,as long as it belongs to the following type, it’s compatible.

Support INTEL SOCKET LGA1150/1151/1155/1156/LGA775,AMD SOCKET FM2/FM1/AM3+/AM4/AM2/940/939/754
